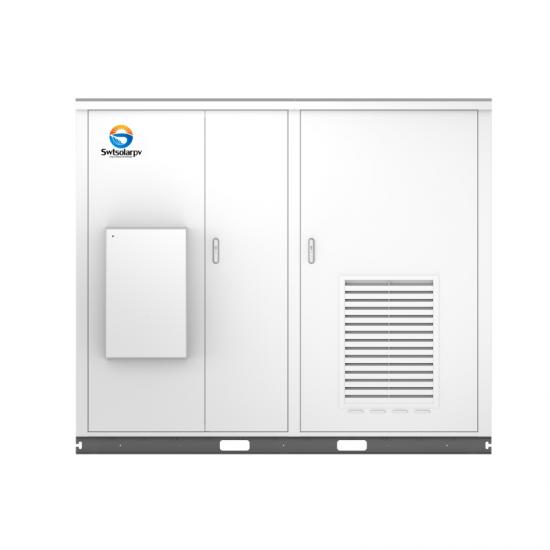

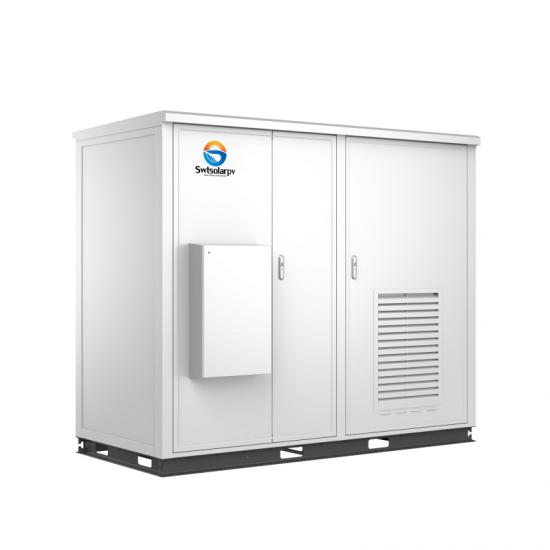

Outdoor Cabinet Energy Storage System Benefit residential battery storage
Outdoor Cabinet Energy Storage System Parameters Table
Model | SCS50KE | SCS100KE | SCS150KE |
AC (on-grid) | |||
Max output power(KVA) | 55KVA | 110KVA | 165KVA |
Rated power(KW) | 50KW | 100KW | 150KW |
Rated voltage(V) | 400V | ||
Rated current (A) | 72A | 144A | 216A |
Voltage range(V) | 320V~460V | ||
Rated frequency (HZ) | 56/60Hz | ||
Frequency range(Hz) | 45-55/55-65Hz | ||
THDI | <3% | ||
Power factor | 1lagging~1leading | ||
AC connection | 3W+N+PE | ||
Transformer ratio | 200/400 | 270/400 | 270/400 |
AC(Off Grid) | |||
Max output power(KVA) | 55KVA | 110KVA | 165KVA |
Rated power(KW) | 55KW | 100KW | 150KW |
Rated voltage(V) | 400KW | ||
Rated current(A) | 72A | 144A | 217A |
THDU | ≤1% linear; or≤5% nonlinear | ||
Rated frequency(Hz) | 50/60Hz | ||
Overload capacity | 110% long-term | ||
PV input | |||
Max.PV input voltage(V) | 1000VDC | ||
Max.PV power(kW) | 60/120KW | 120/180/240KW | |
MPPT voltage range(V) | 200VDC-850VDC | ||
MPPT voltage range@full load (V) | 450VDC-850VDC | ||
Battery | |||
Battery capacity | 55KWH-344KWH | ||
Battery type | LiFePO4 battery | ||
Battery Module | 51.2V 120AH blade battery module | ||
Number of battery racks | 1~4 | ||
Battery voltage range(V) | 320V-850V | 420V-850V | 420VDC-850VDC |
Max. charging power(KW) | 60/120KW | 120/180/240KW | |
General data | |||
Dimension WDH(MM) | Customization/1650/2400mm | ||
Weight(kg) | Customization | ||
Operation temperature | -30℃ to +55℃ | ||
Relative humidity | 0~95% non-condensing | ||
Ingress protection | IP54 | ||
Noise emission(DB) | <70dB | ||
Altitude | 4500m(>3,000 Derating) | ||
Fire extinguishing system | Optional | ||
PCS cooling way | Intelligent Fan | ||
Battery cooling way | Air Cooling | ||
Display and communication | |||
Display | LCD touch-screen | ||
BMS communication | RS485/CAN | ||
EMS communication | RS485TCP/IP | ||
Certificates | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017, Pakistan & India lEC61727, IEC62116, IEC 61683 |
Application
●Power shortage areas
●Off-grid island
●Industrial &commercial energy storage
●Off-grid mine
●Nomadic farm
●Rural power shortage
