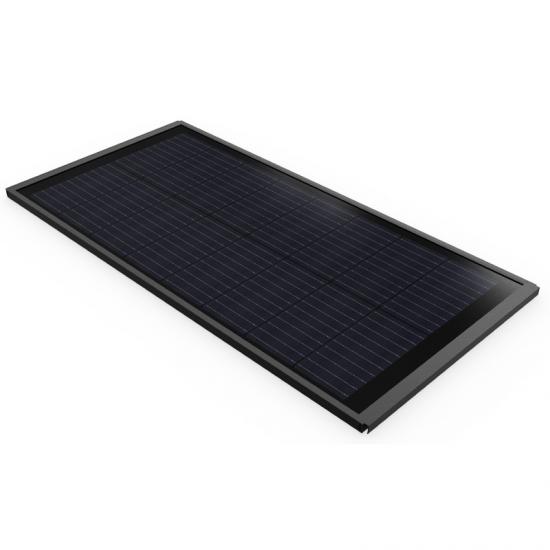

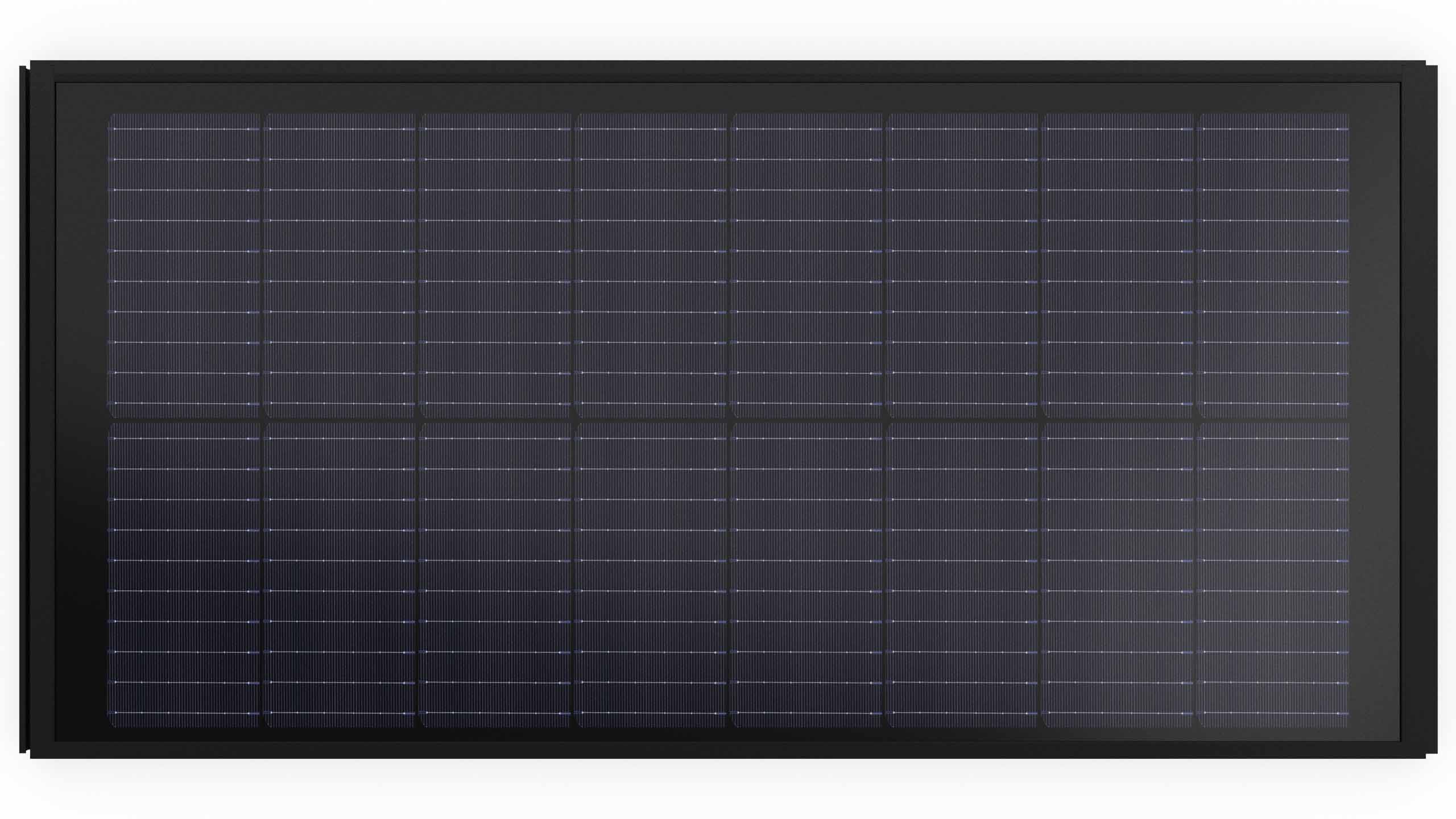

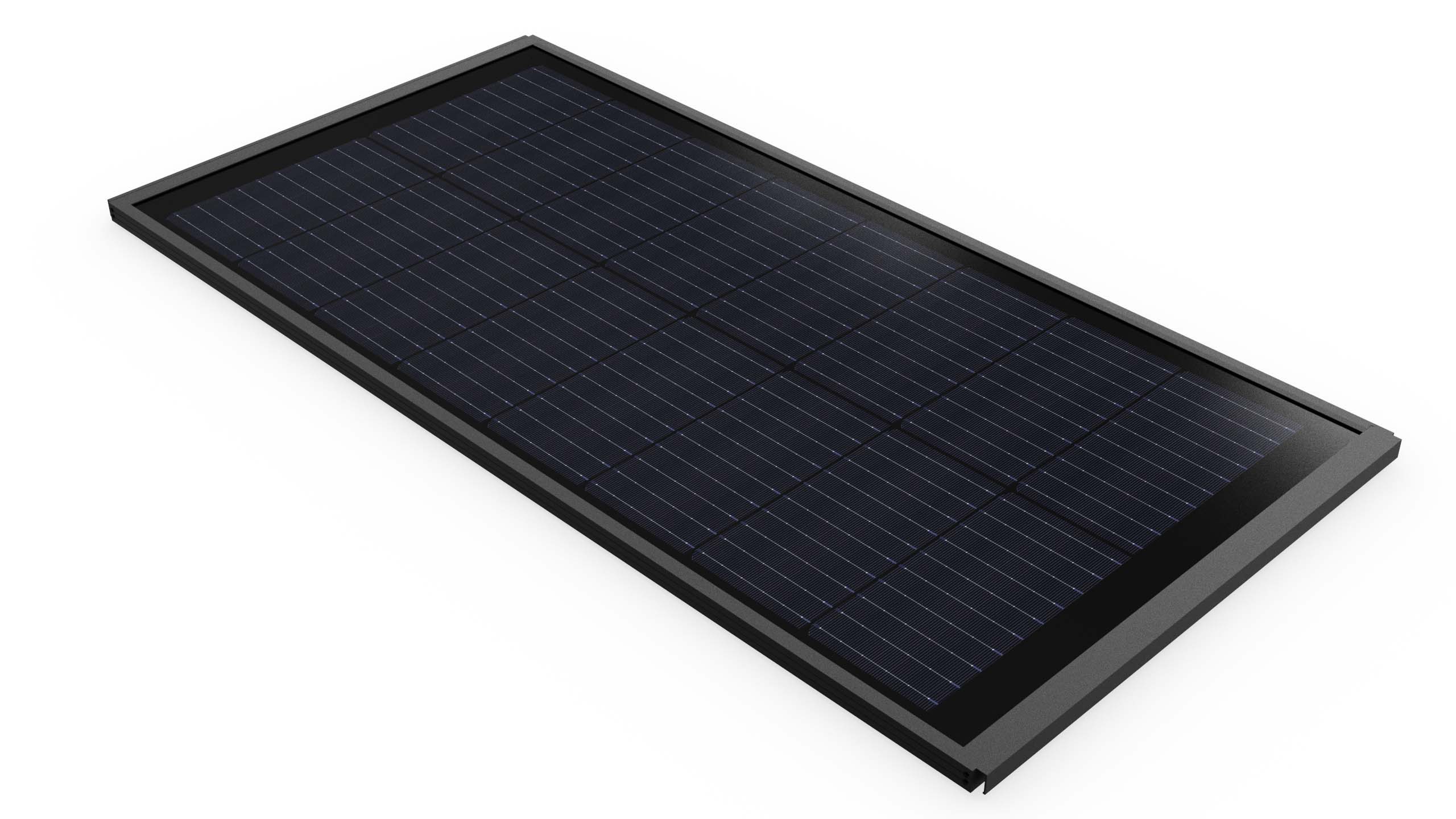

Fixed Style Solar Roof Tile 60W
|
Parameters |
|
|
Model |
UPB-RTFI-060W |
|
Dimension(mm) |
847*417*20 |
|
Weight(kg) |
4.11 |
|
Dimension of Cell (mm) |
182*91 |
|
Performance Characteristic |
|
|
Junction Box |
IP67, one diode |
|
Safety Level |
Class II |
|
Fire-rating |
Class C |
|
Hail-rating |
Class 3 (25.4 mm/1 in. in diameter) |
|
Agency Approval |
IEC 61215,IEC 61730,TUV CE,MCS |
|
STC (irradiance of 1000W /m2, AM 1.5 spectrum, and a cell temperature of 25°C or 77° F) |
|
|
Voc (V) |
11.02 |
|
Isc (A) |
6.75 |
|
Vmp(V) |
9.48 |
|
Imp (A) |
6.45 |
|
Pmax (W) |
60 |
|
Electrical Characteristics |
|
|
Max series fuse rating(A) |
15 |
|
Max system voltage (V) |
1000 |
|
Maxistatic load (front,Pa) |
5400 |
|
Maxi static load (back,Pa) |
2800 |
|
Working Temp |
-40℃+85℃ |
|
Current/Voltage Tolerance |
±4%/士3% |
|
Package Characteristics |
|
|
Single box (pcs) |
50 |
|
Single container loading(pcs) (9.6 meter box truck) |
1200 |
