25.6V LiFePO4 Battery solar batteries for home

Energy Storage Battery 51.2V LiFePO4 Battery Wall-mounted Lithium Battery solar batteries for home

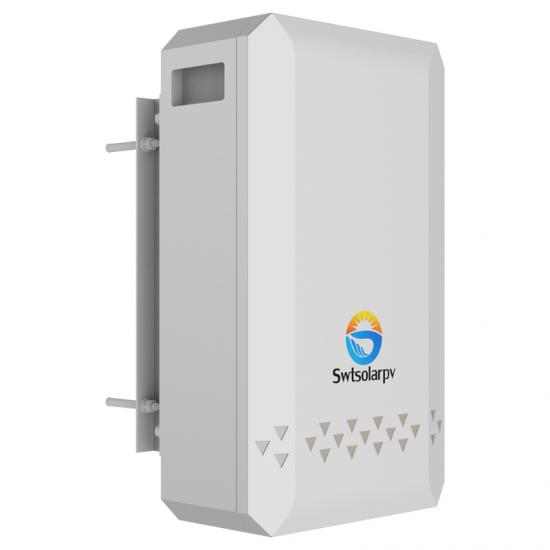

SWT-POWER wall mounted Lithium battery (LiFePO₄ battery)solar batteries for home solutions are highly integrated, deep cycle backup power solutions for your solar home energy storage system. With rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion.

Inquiry Now

Product Detail

51.2V series product performance

Micro-grid application, Backup power, Outage protection, Power peak load shifting and peak-valley arbitrage, solar batteries for home

51.2V Series Parameters Table

Model	TDH-2560WH05-FL3	TDH-5120WH05-FL3	TDH-10240WH05-FL3
Type	Lithium Battery
Nominal Voltage	51.2V
Battery Module	2.56kwh	5.12kWh	10.24kWh
Nominal Capacity/Energy	50Ah/2.56kwh	100Ah/5.12kWh	200Ah/10.24kWh
Rated Capacity/Energy	45Ah/2.3Wh	90Ah/4.6kwh	180Ah/9.2kWh
Operating Voltage	47.2~56.8v
Rated Charging/Discharging Current	25A	50A	100A
Max Charging/Discharging Current	48A	96A	192A
Rated Charging/Discharging Power	1.28kW	2.56kW	5.12kW
Max Charging/Discharging Power	2.5kW	5.02kw	10.04kW
Battery Type	Lithuim iron phosphate(LFP)
Operative Temperature Range	-10~50°C
Recommended Operating Temperature	15°C~30°C
Cooling	Nature cooling
Efficiency Of Discharge	96~99%@1C
Function
Installation	Floor standing installation
Ingress Protection	IP20
Alarm&Protection	Over Voltage,Under Voltage,Over Current,Over temperature,Short Circuit etc.
Communication Port	RS232/CAN/RS485(Optional)
Cell Safety Certification	CE,IEC62619,UL1973,CEC,UN38.3

Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
