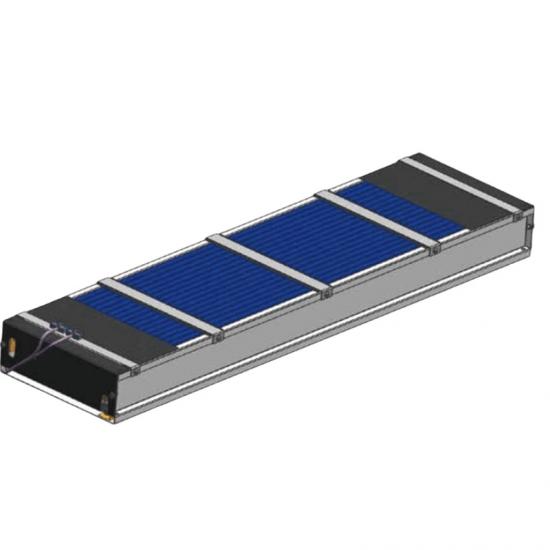

- Vehicle grade blade cell, higher quality solar energy battery
- Lithium iron phosphate system, higher safety
- Good temperature performance, wide operating temperature range- High energy density and environment-friendly
- Extremely simplified design, high flexibility
Benefit:
----Innovative structure, good thermal stability, higher safety performance than the traditional battery; in the case of high temperature, overcharge, extrusion, acupuncture, etc., the probability of hot cell is reduced, effectively improving safety.
----The energy density per unit volume is one-third higher than that of traditional batteries, which brings better spatial performance for new energy;
----Light battery weight, corresponding to overcoming the weight consumption of energy reduction, improves battery life;
----Material cost performance ratio advantage is obvious.
|
Model |
SBM51.2V120H-B2 |
SBM51.2V130H-B2 |
SBM51.2V140H-B2 |
|
Basic Specification |
|||
|
Nominal Voltage |
51.2V |
||
|
Nominal capacity |
120AH |
130AH |
140AH |
|
Structure Specification |
|||
|
Length(MM) |
1006.8±3MM |
1020±3MM |
|
|
Width(MM) |
260 3±MM |
266.7±3MM |
|
|
Height(MM) |
94.7±3MM |
95.2±3MM |
|
|
Weight(KG) |
About 46KG |
About 46.5KG |
|
|
Electrical Specification |
|||
|
Standard charging mode |
CC/CP/VP |
||
|
Charging current |
100A(Maximum continuous charging current) @25°C |
||
|
Charge limit voltage(V) |
3.8V/CELL |
||
|
Standard discharging mode |
CC/CP/VP |
||
|
Max. constant discharging current(A) |
100A(Maximum continuous discharging current) @25°C |
||
|
Discharge cut-off voltage (V) |
2.7V/CELL |
||
|
Operating conditions |
|||
|
Working temperature |
charging: 0~+50°C |
||
|
|
discharging: -20~+55°C |
||
|
Storage temperature |
Short term storage: -10~+55℃ (<3 months, SOC: 20%~60%) |
||
|
|
Long term storage: -10~+40℃ (<1 year, SOC:30%~60%) |
||
|
Storage humidity |
5%~95% |
||
|
Shipping status |
Shipping state voltage(V) :3.20~3.30V/CELLSOC:20%~40% |
||
|
|
SOC:20%~40% |
||
|
Output connection |
Hexagon head bolt, Spring washer, Flat washer assembly-M6*12 |
||
|
Sampling line terminal |
CJT C3030HF-2*13P |
||
|
|
CJT C3030HF-2*10P C3030HF-2*9P |
||
|
Output nominal torque |
6.0-6.5 N.M |
||
|
Requirements for storage and power supply |
Charge and discharge once every 6 months and then recharge to 25% SOC(Room temperature environment) |
||
