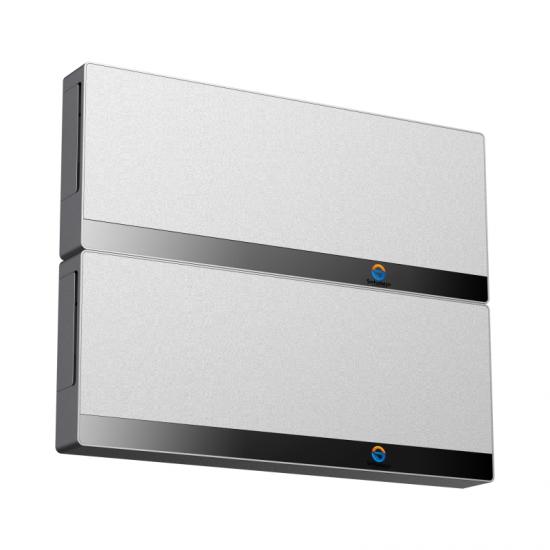

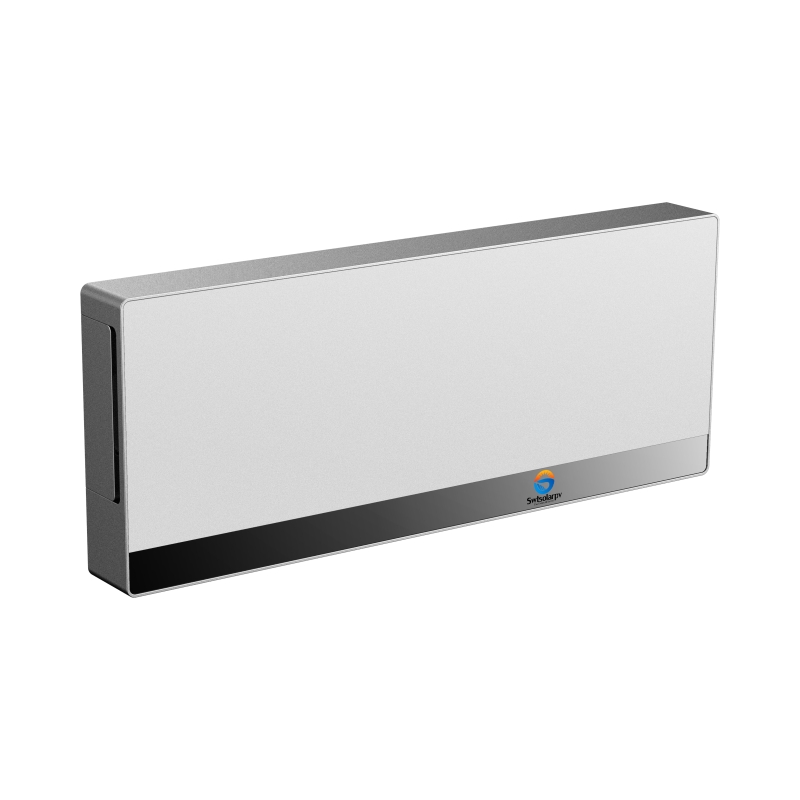

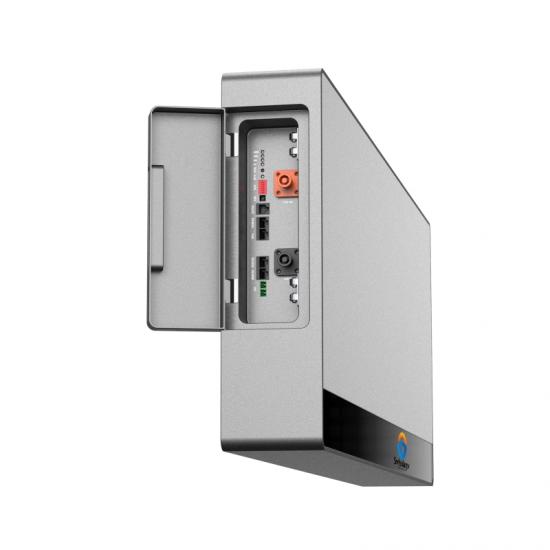

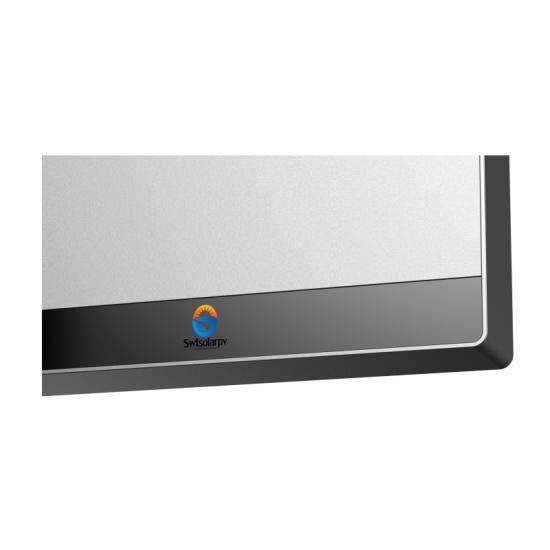

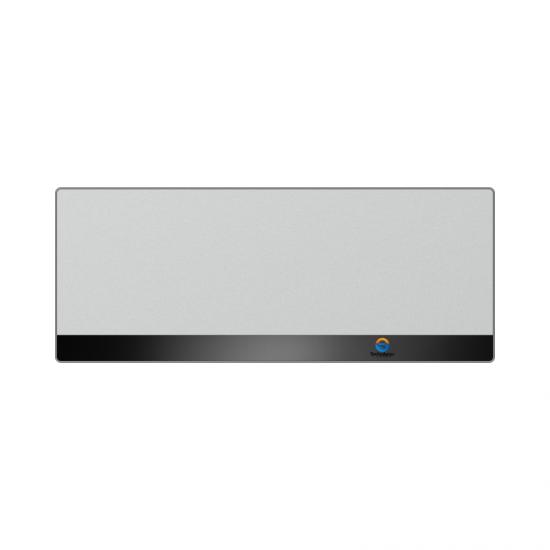

51.2V 6.144KWH LiFePO4 Battery Solar Battery Storage best batteries for solar off grid

Compatible to residential 48V hybrid inverter and off grid inverter
Compatible with CAN / RS485 communication interface.
Matching with leading inverter brands


  • Payment:

    FOB
  • Product Origin:

    Fujian
  • Color:

    White
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    7-15 Days
  • Order(MOQ):

    10
  • Product weight:

    60kg

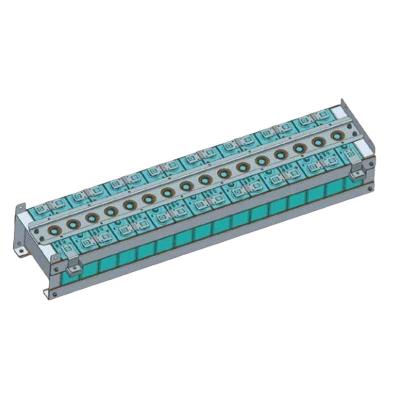

51.2V 6.144KWH LiFePO4 Battery blade cell Product Features




Flexible configuration:

Best batteries for solar off grid

Scalable battery design for easy expansion

Max. 16pcs in parallel



Safe and reliable:

 blade lithium cellmore Safety, longer life cycle and more usable energy

Up to to more than 15 years working life

 blade lithium cell, vehicle grade and higher quality

More safety, longer life cycle and more usable energy



Convenient operation and maintenance:

Stylish, ultra-thin

Easy connection,saving installation time and cost



Abundant configuration:

Compatible to residential 48V hybrid inverter and off grid inverter

Compatible with CAN / RS485 communication interface.

Matching with leading inverter brands






51.2V 6.144KWH LiFePO4 Battery blade cell Parameters Table

Model SBM51.2V120H-B2 SBM51.2V130H-B2 SBM51.2V140H-B2
Basic Specification
Nominal Voltage 51.2V
Nominal capacity 120AH 130AH 140AH
Structure Specification
Length(MM) 1006.8±3MM 1020±3MM
Width(MM) 260 3±MM 266.7±3MM
Height(MM) 94.7±3MM 95.2±3MM
Weight(KG) About 46KG About 46.5KG
Electrical Specification
Standard charging mode CC/CP/VP
Charging current 100A(Maximum continuous charging current) @25°C
Charge limit voltage(V) 3.8V/CELL
Standard discharging mode CC/CP/VP
Max. constant discharging current(A) 100A(Maximum continuous discharging current) @25°C
Discharge cut-off voltage (V) 2.7V/CELL
Operating conditions
Working temperature charging: 0~+50°C
discharging: -20~+55°C
Storage temperature Short term storage: -10~+55 (<3 months, SOC: 20%~60%)
Long term storage: -10~+40 (<1 year, SOC:30%~60%)
Storage humidity 5%~95%
Shipping status Shipping state voltage(V) :3.20~3.30V/CELLSOC:20%~40%
SOC:20%~40%
Output connection Hexagon head bolt, Spring washer, Flat washer assembly-M6*12
Sampling line terminal CJT C3030HF-2*13P
CJT C3030HF-2*10P C3030HF-2*9P
Output nominal torque 6.0-6.5 N.M
Requirements for storage and power supply Charge and discharge once every 6 months and then recharge to 25% SOC(Room temperature environment)





“已经过社区验证”图标
Inverters can be adapted to it

SWT batteries can be adapted to inverter brands on the market. If you have any questions, please send us an email.



“已经过社区验证”图标




“已经过社区验证”图标




Related Products
48v 100ah lithium ion battery
48v 100ah lithium ion battery Lithium Iron Phosphate (LiFePO4, LFE) is kind of Li-Ion rechargeable battery for high power applications, such as EV car , Power Tool and RC hobby. LFP cells feature with high discharging current, non explosive, long cycle life.
51.2V 100Ah LiFePO4 Battery
A sleek and space-saving solution for your energy storage needs. With its compact design and easy installation, it seamlessly blends into any environment. Whether in your home, office, or commercial space, our wall-mounted unit provides reliable and efficient energy storage,empowering you to optimize energy usage and reduce waste.
12.8V LiFePO4 Battery
SWT-POWER wall mounted Lithium battery (LiFePO₄ battery)home battery storage solutions are highly integrated, deep cycle backup power solutions for your solar home energy storage system. With rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion.
25.6V LiFePO4 Battery solar batteries for home
SWT-POWER wall mounted Lithium battery (LiFePO₄ battery)solar batteries for home solutions are highly integrated, deep cycle backup power solutions for your solar home energy storage system. With rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion.
51.2V 100Ah 5.12Kwh battery solar batteries for home
SWT-POWER solar batteries for home. Wall mounted Lithium battery (LiFePO₄ battery) solutions are highly integrated, deep cycle backup power solutions for your solar home energy storage system. With rich experience and advanced techniques, the product has the features of the fashionable design, high energy, high power density, long service life, and easiness of installation and expansion.

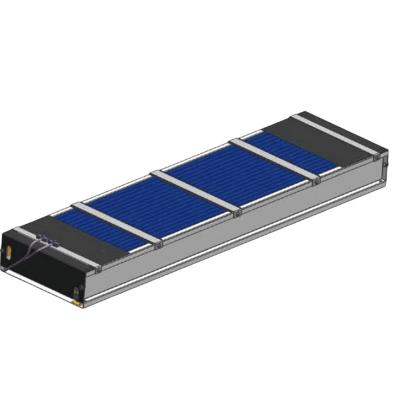

120AH blade cell solar energy battery
