- Vehicle grade blade cell, higher quality- Vehicle grade blade cell, higher quality solar power packs
- Lithium iron phosphate system, higher safety
- Extremely simplified design, high flexibility solar power packs
- Good temperature performance, battery operating temperature range
Applications：
Low-voltage household energy storage
High-voltage household energy storage
C&I energy storage
|
Model |

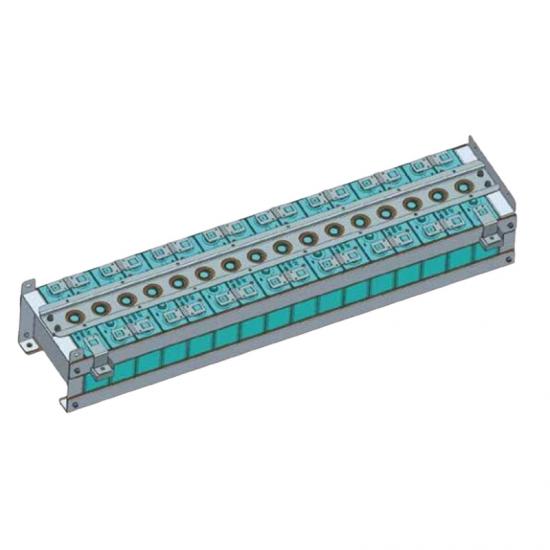

SBM51.2V50H-B2 |
|
Data sheet |
|
|
Nominal Voltage |
51.2V |
|
Nominal capacity(AH) |
50AH |
|
Structure Specification |
|
|
Length(MM) |
810.0±3MM |
|
Width(MM) |
205.0±3MM |
|
Height(MM) |
145.0±3MM |
|
Weight(KG) |
About 30KG |
|
Electrical Specification |
|
|
Standard charging mode |
CC/CP/VP |
|
Charging current |
50A @25℃ |
|
Charge limit voltage(V) |
3.8V/CELL |
|
Max. constant discharging current(A) |
50A @25℃ |
|
Discharge cut-off voltage (V) |
2.7V/CELL |
|
Operating conditions |
|
|
Working temperature |
Charging: 0~+50℃ |
|
|
Discharging: -20~+55℃ |
|
Storage temperature |
Short term storage: -10~+55℃(<3 months, SOC: 20%~60%) |
|
|
Long term storage: -10~+40℃(<1 year,SOC: 30%~60%) |
|
Storage humidity |
5%~95% |
|
Shipping status |
Voltage(V):3.20~3.30V/CELL |
|
|
SOC:20%~40% |
|
Output connection |
Hexagon head bolt and spring washer and plain washer assembly_M6x12 |
|
Sampling line terminal |
CJT C3030HF-213P |
|
Output nominal torque |
6.0-6.5 NM |
|
Storage requirements |
Charge and discharge once every 6 months, and then recharge to 25% SOC(Room temperature environment |
