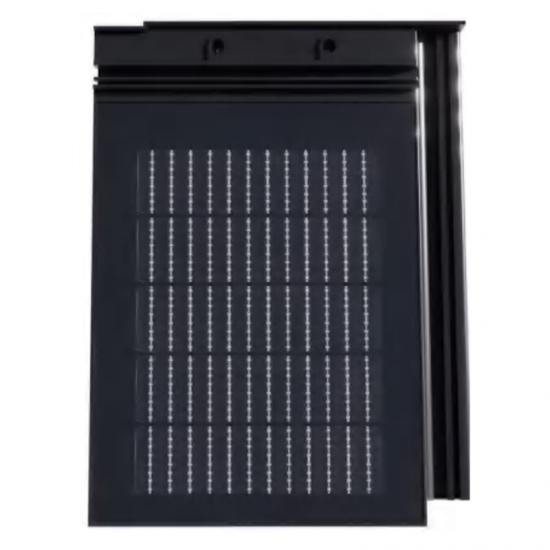

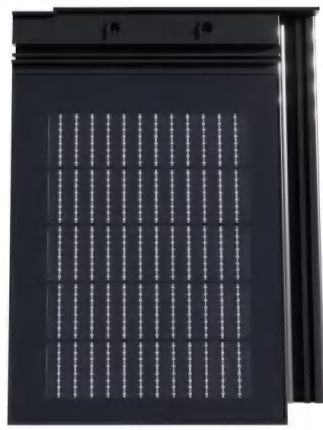

One piece style BIPV solar roof tile 12W
|
Structure Parameter |
|
|
Model |
UPB-RTOP-012W |
|
Size(mm) |
40*300*39 |
|
Weight(kg) |
1.3 |
|
Cell Size(mm) |
210*52.5 monocrystal 5 pieces |
|
Performance Characteristic |
|
|
Connecting box |
IP67, a diode |
|
safety class |
II class |
|
fire rating |
C class |
|
Frost protection class |
Class 3 (diameter 25.4mm/1 inch) |
|
Structure approval |
IEC 61215,IEC 61730,TUV CE, MCS |
|
STC (irradiance of 1000W /m2, AM1.5 spectrum, cell temperature of 25°C or 77° F) |
|
|
Open voltage (V) |
3.45 |
|
Short circuit current (A) |
4.58 |
|
Operating voltage (V) |
2.95 |
|
Operating current (A) |
4.31 |
|
Power (W) |
12 |
|
|
|
|
Electrical Specification |
|
|
Maximum fuse limit (A) current |
15 |
|
Maximum system voltage (V) |
1000 |
|
Maximum frontal static load (front,Pa) |
5400 |
|
Maximum static load on back (back,Pa) |
2800 |
|
Operating temperature |
-40℃+85℃ |
|
Current-voltage tolerance |
±4%/士3% |
|
Package Characteristics |
|
|
Single box (pcs) |
18 |
|
Container loading (pcs)(9.6m van) |
6048 |
