on & off grid solar system

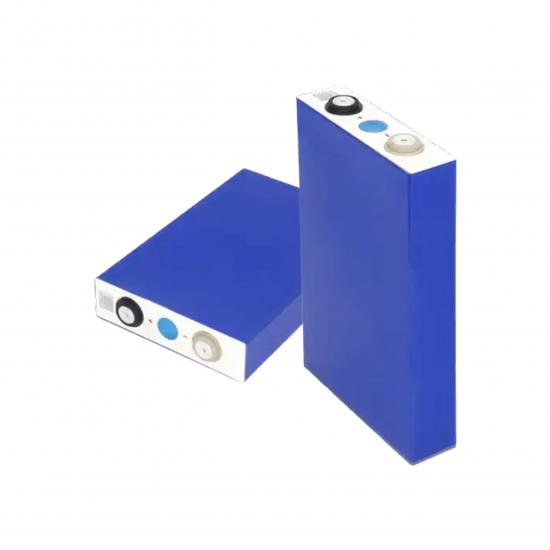

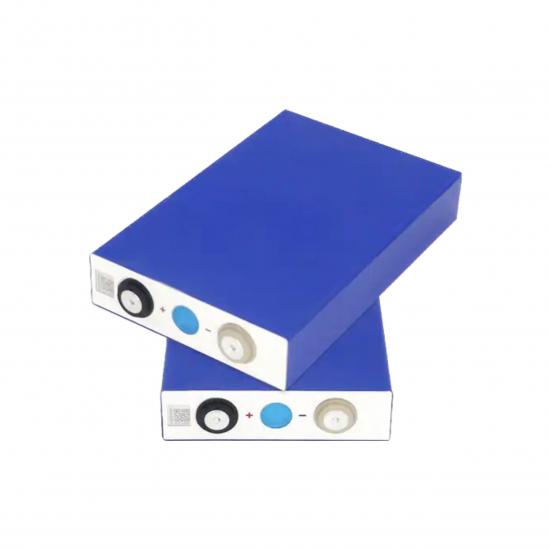

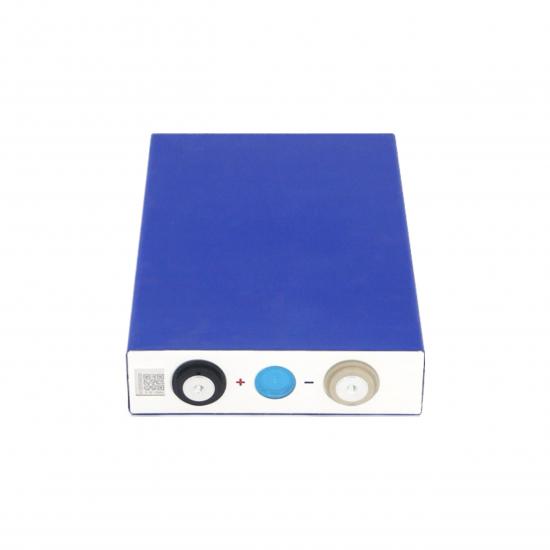

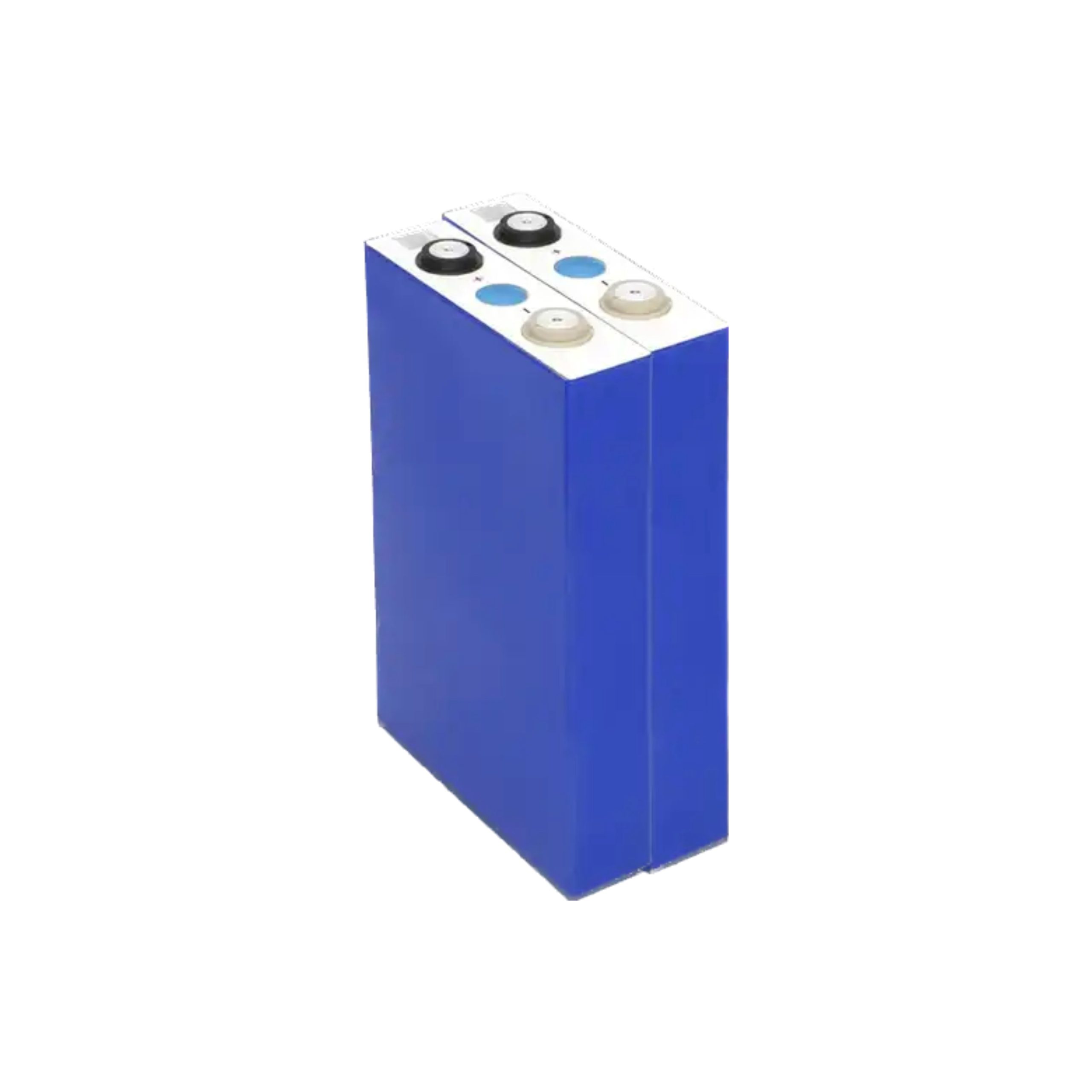

3.2V LF90K 90Ah LiFePO4 Battery Cells

The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features.


Specification


  • Typical capacity:90 Ah
  • Typical Voltage:3.2V
  • The charging ratio:0.5C
  • The discharge rate:0.5C
  • AC Impedance resistance (1KHz):≤0.5mΩ
  • Operating Temperature: Discharge:-20-55 degrees Charge: 0-55 degrees
  • Cycle life:≥6000 Times
  • Charging current:3C

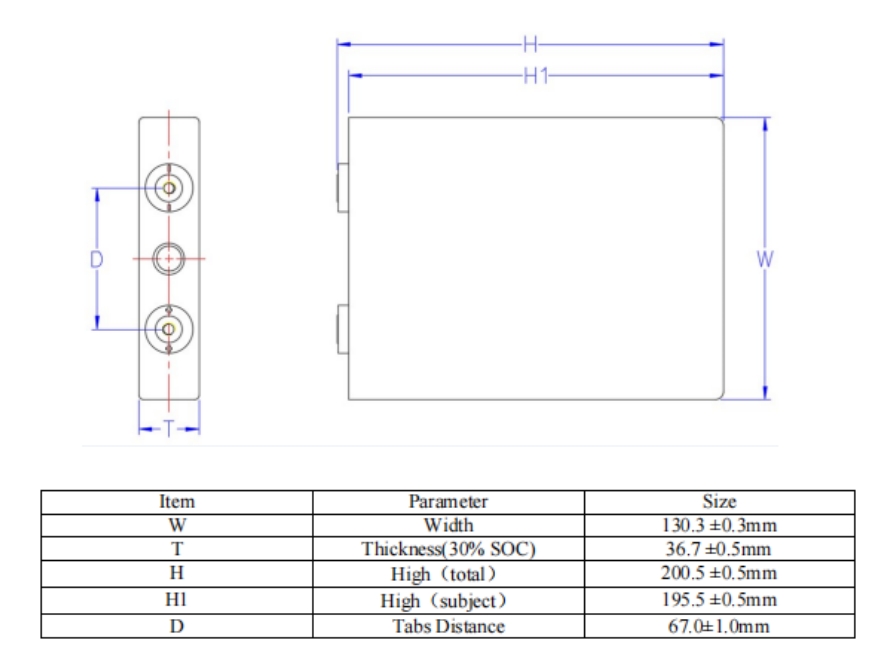

  • Typical dimension:130*36.7*200mm
  • Weight:1.99±0.1Kg
  • Order(MOQ):

    10


The LiFePO4 battery cell is a high-performance and long-lasting energy storage solution. With its exceptional power output and reliability, it is perfect for various applications. Designed for longevity, the LiFePO4 cell offers an extended cycle life, ensuring reliable performance over time. Safety is paramount, and this cell incorporates advanced features such as thermal stability and overcharge protection, providing peace of mind during operation. Whether it’s powering electric vehicles or storing renewable energy, the LiFePO4 cell is a versatile choice for a wide range of industries.


Widely Application:

*EV, e-scooter, electric golf car, electric vacuum sweeper.
*Electronic toy, model airplane, remote control.
*Communication equipment: Cordless telephone, inter-phone.
*Modality equipment and consumer electronics.
*Decorative lighting, Solar lamps, torch, emergency lights, solar street lights, and power supply.
