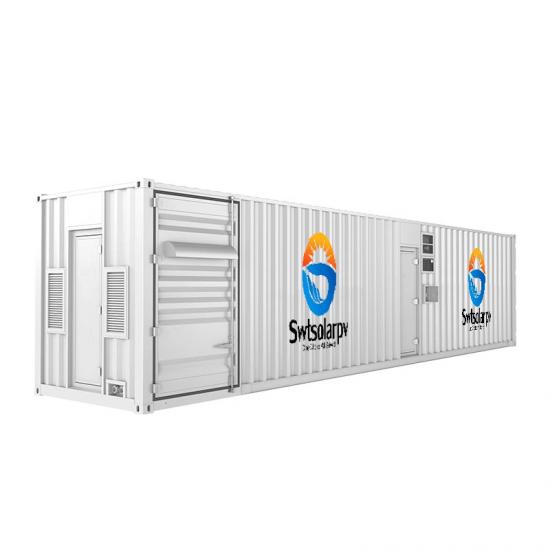

AC-coupled 40ft Container Energy Storage System solar storage system

Outdoor all-in-one ESS solution compatible with lithium battery storage residential battery storage, which used famous brand blade LiFePO4 battery module and original high voltage control box, comes with SNE 30KW or 50KW hybrid solar inverter. Easy to install and dispatch, with built-in HVAC/FSS (optional), and could be used in parallel on AC and/or DC. It is a compact and flexible ESS designed by SWT based on the characteristics of small C&I loads.

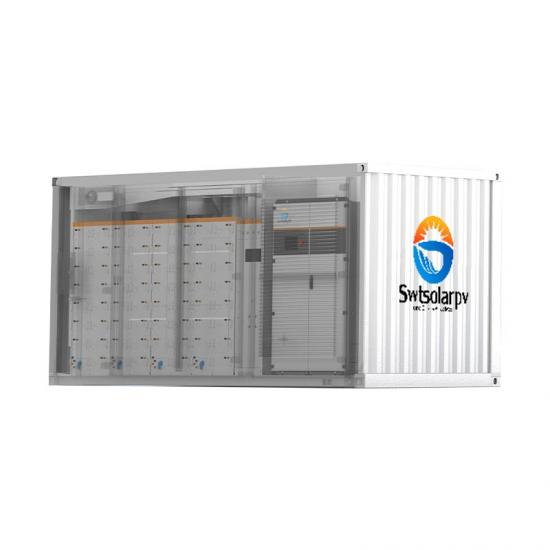

This outdoor 20ft container solar storage system ESS for large-scale commercial and industrial energy storage projects. The system DC side consists of famous brand vehicle-grade modular lithium iron phosphate battery energy units with BMS protection, and the AC side uses SNE series PCS, which, through the EMS operation strategy, interacts with the grid in a friendly way and provides power support for customers during power-limited periods. built-in EMS, with multiple working modes such as self-use, peak load shifting, TOU, battery priority, etc.

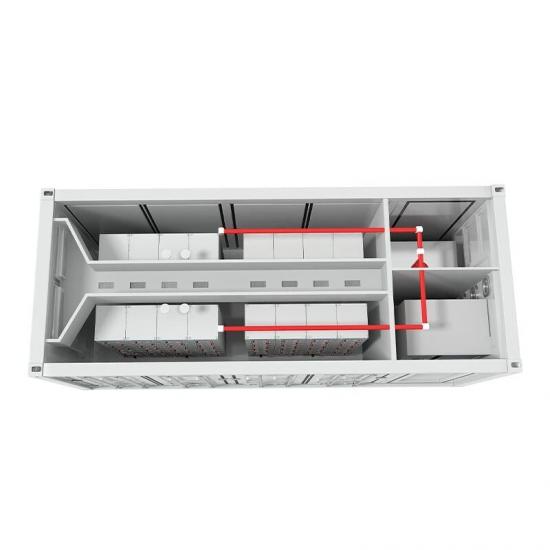

Containerized Battery Energy Storage System adopts an All-in-Onemodular design, integrating the battery PACK, intelligent energy storage converter(PCS), power distribution unit (PDU), automatic fire extinguishing system (FFS), andtemperature control system (TCS), intelligent monitoring system (lMS), etc.areintegrated into one, and the 20HQ standard container design is adopted, which savesapplication space and facilitates transportation, hoisting, installation and maintenancePlug-and-play design greatly reduces on-site construction time and costs

SCT is integrated with batteries,PCS,BMS,fire fighting system,temperature control system,monitoring system,EnerGeo aims to provide reliable energy supply for all fixed loads in the C&I industries, flexibly configuring various applications through the interfaces of control units, and exchanging operating data of battery systems with other devices. The modular design allows for various combinations of systems to adapt to different voltage and capacity requirements. Multiple battery cabinets can be connected in parallel to each other to provide a large-scale energy storage solution.The front-end of the system can be connected to solar system, and the back-end of the system can be connected to DC charging piles and forming an integrated solar + storage + charging project.

solar generator can technically refer to a solar solution that combines a portable power station with solar panels. It converts sun energy captured by solar panels into electrical power and then stores it in a portable power station for later use.

This single phase hybrid solar Inverter series can convert solar energy to AC energy and store energy into battery. Worked with 48V battery both lead-acid and lithium type, the PV hybrid inverter has multiple application modes such as self-consume, peak shaving and valley filling, and backup power supply. The operating mode of hybrid inverter solar system depends on photovoltaic energy and user preferences. In addition, It supports parallel connection of multiple machines and is suitable for Hybrid energy storage solar system.

This split-phase 48V hybrid inverter is for North American market which is a high quality smart hybrid solar inverter. Working together with solar panels and 48V battery storage system, they make up a on grid off grid hybrid solar system, which can be widely used in various home storage application environments. It has multiple application modes such as self-consumption, peak shaving and valley filling and backup power supply. Combined with smart display, it makes operation and maintenance easier. As an inverter manufacturer, our 8kw hybrid inverter is very popular in the market.

The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features. Specification Typical capacity：304.0 Ah @ 0.5C discharge Typical Voltage：3.2V Discharge current 0.5C with 2.5V cut off. (25±2)℃ AC Impedance Resistance：≤0.5mΩ Standard charge and discharge： Charge/Discharge Current 0.5C/1C Pulse Charge/Discharge Current （30s）：2C/2C The maximum charge current of the battery does not exceed 1C under 0℃～45℃. Recommended SOC window：10%～90% Charging Temperature：0℃～60℃ Reference Continuous/Pulse Charge/Discharge Current Map Discharging Temperature：-30℃～60℃ Reference Continuous/Pulse Charge/Discharge Current Map Storage Temperature：- 20~45℃ Battery can work at a specified temperature range with capacity loss intolerance. Typical dimension：173.8*71.5*207.4mm Weight：5.49±0.3kg Cycle Life at 25℃：≥6000 cycles @250A/250A
