I​ntegrated Outdoor Battery Energy Storage Cabinet Compact Modular Design

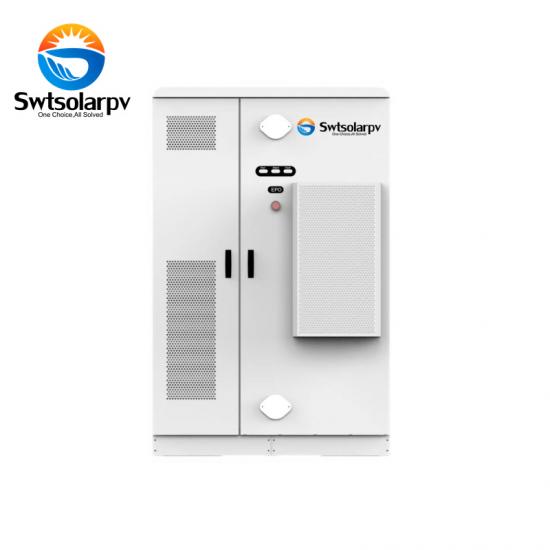

Outdoor all-in-one ESS solution compatible with lithium battery storage residential battery storage, which used famous brand blade LiFePO4 battery module and original high voltage control box, comes with SNE 30KW or 50KW hybrid solar inverter. Easy to install and dispatch, with built-in HVAC/FSS (optional), and could be used in parallel on AC and/or DC. It is a compact and flexible ESS designed by SWT based on the characteristics of small C&I loads.

This outdoor 20ft container solar storage system ESS for large-scale commercial and industrial energy storage projects. The system DC side consists of famous brand vehicle-grade modular lithium iron phosphate battery energy units with BMS protection, and the AC side uses SNE series PCS, which, through the EMS operation strategy, interacts with the grid in a friendly way and provides power support for customers during power-limited periods. built-in EMS, with multiple working modes such as self-use, peak load shifting, TOU, battery priority, etc.

This outdoor 40ft container solar storage system ESS for large-scale commercial and industrial energy storage projects. The system DC side consists of famous brand vehicle-grade modular lithium iron phosphate battery energy units with BMS protection, and the AC side uses SNE series PCS, which, through the EMS operation strategy, interacts with the grid in a friendly way and provides power support for customers during power-limited periods. built-in EMS, with multiple working modes such as self-use, peak load shifting, TOU, battery priority, etc.

Containerized Battery Energy Storage System adopts an All-in-Onemodular design, integrating the battery PACK, intelligent energy storage converter(PCS), power distribution unit (PDU), automatic fire extinguishing system (FFS), andtemperature control system (TCS), intelligent monitoring system (lMS), etc.areintegrated into one, and the 20HQ standard container design is adopted, which savesapplication space and facilitates transportation, hoisting, installation and maintenancePlug-and-play design greatly reduces on-site construction time and costs

Off Grid Hybrid energy storage solar system is a solar system, suitable for a place where is no grid network or grid power is not stable. This solar can be described as off-grid solar system with utility backup power, or grid-tied solar system with extra battery storage.

10kwh battery Applicable Scenarios: Home energy management Smart grid adjust power demand and supply balance Backup power supply Optimization of distribution network structure Mix new energy sources and make more rational use of renewable energy such as solar or wind energy

The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features. Specification Typical capacity：90 Ah Typical Voltage：3.2V The charging ratio：0.5C The discharge rate：0.5C AC Impedance resistance (1KHz)：≤0.5mΩ Operating Temperature： Discharge:-20-55 degrees Charge: 0-55 degrees Cycle life：≥6000 Times Charging current：3C Typical dimension：130*36.7*200mm Weight：1.99±0.1Kg

The LiFePO4 Battery Cell is a high-performance, long-lasting, and versatile energy storage solution with advanced safety features. Specification Typical capacity：106.5Ah @ 0.5C discharge Discharge current 1.0C with 2.5V cut off. (25±2)℃ Typical Voltage：3.2V Discharge current 0.5C with 2.5V cut off. (25±2)℃ AC Impedance Resistance：≤0.50mΩ Standard charge and discharge： Charge/Discharge Current 1C/1C Pulse Charge/Discharge Current （30s）：3C/3C The maximum charge current of the battery does not exceed 1C under 0℃～45℃. Charging Temperature：0℃～55℃ Reference Continuous/Pulse Charge/Discharge Current Map Storage Temperature：- 20~60℃ Battery can work at a specified temperature range with capacity loss intolerance. Cycle Life：≥6000 times Typical dimension：130.3*36.7*200mm Weight：1.98±0.50kg
