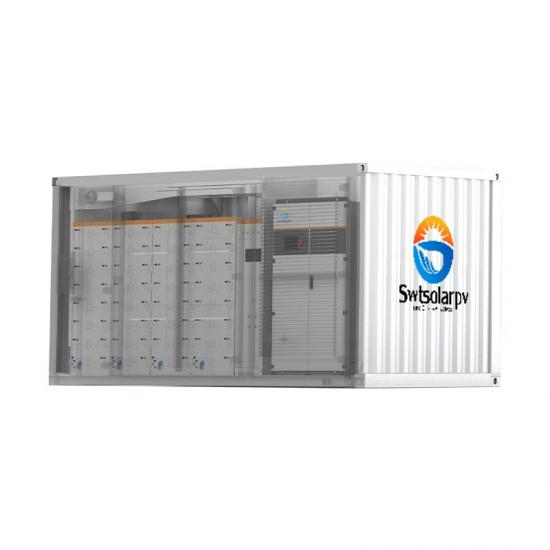

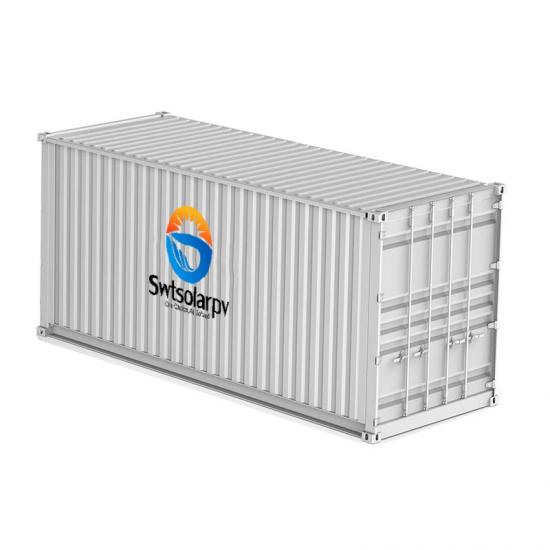

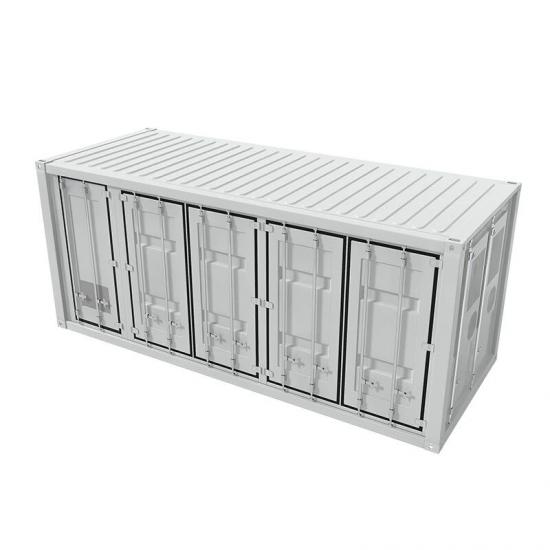

AC-coupled 20ft Container Energy Storage System solar storage system
Product Features
Flexible configuration:
Standardized design, easy to expand and maintain;

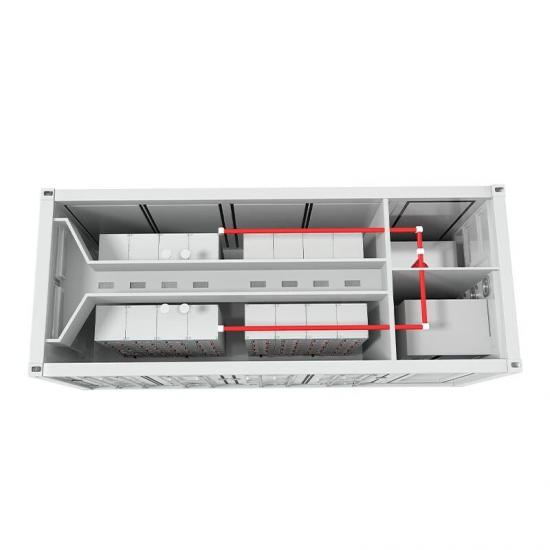

Independent air duct design, more stable operation;
User friendly EMS with multiple working mode;
Safe and reliable:
Support battery management system and comprehensive thermal management;
Famous brand vehicle grade battery cell (LFP), more safety, longer life cycle, more usable energy, BMS protection:
Built-in fire control, temperature control and warning system function for multiple security
Built-in isolation transformer, high load adaptability;
Abundant configuration:
Diversified selection of equipment capacity;
Can be integrated with monitoring system;
Benefits
● Reduce system operating costs
● Can be used for a variety of backup purposes
● Turnkey projects
● Support 7*24 remote service
Application
● Power shortage areas
● Off-grid island
● Industrial &commercial energy storage
● Off-grid mine
● Nomadic farm
Model
SCT550KE
SCT1000KE
AC(on-grid)
Max output power(KVA)
550KVA
550KVA*2
Rate output power(kW)
500KW
500KW*2
Rated voltage(V)
400V
Voltage range(V)
320V-460V
Rated current(A)
722A
722A*2
Max. output current(A)
794A
794A*2
Rated frequency (HZ)
50/65HZ
Frequency range (HZ)
45-55/55-65Hz
THDI
<3%
Power factor
1lagging-1leading (Settable)
AC connection
3W+N+PE
AC(off grid)
Rated voltage(V)
400V
THDU
<1% Linear <5% Nonlinear
Rated frequency(HZ)
50/65Hz
Overload capacity
110%long-term
DC(battery)
Battery capacity (MWH)
1-1.5MWH
2-2.5MWH
Battery Module
25.6V 190AH/280AH optional
25.6V280AH
Number of battery racks
5~8
11~14
BMS communication interface
RS485/CAN
Voltage range (V)
500V-850V
Max. Current (A)
1128A
General data
Max.efficiency
97.50%
Ingress protection
IP54
Fire extinguishing system
support
Operating temperature
-30~+55℃
PCS cooling way
Battery cooling way
Air conditioning cooling
Relative humidity
0 ~95% non-condensing
Altitude
4500m(>3000m Derating
Dimension WDH(MM)
6058*2591*2438mm
12192*2438*2896mm
Weight(KG)
Customization
On/Off grid switching
Automatic
Display and communication
Display
LCD touch-screen
BMS communication
RS485/CAN
EMS communication
RS485,TCP/IP
