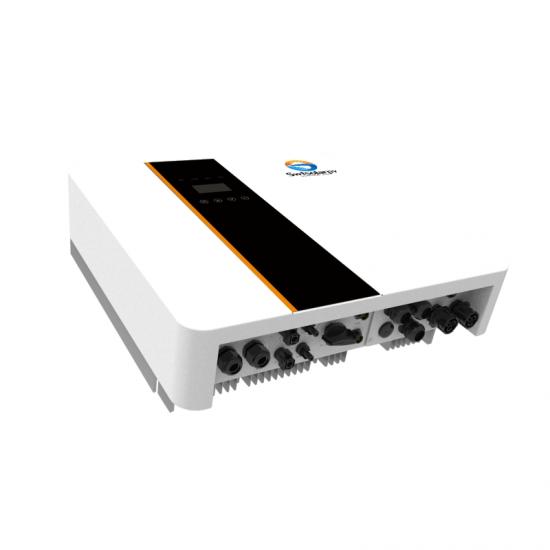

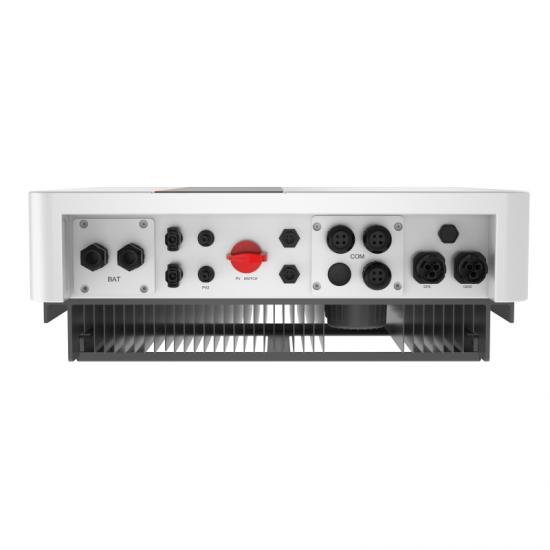

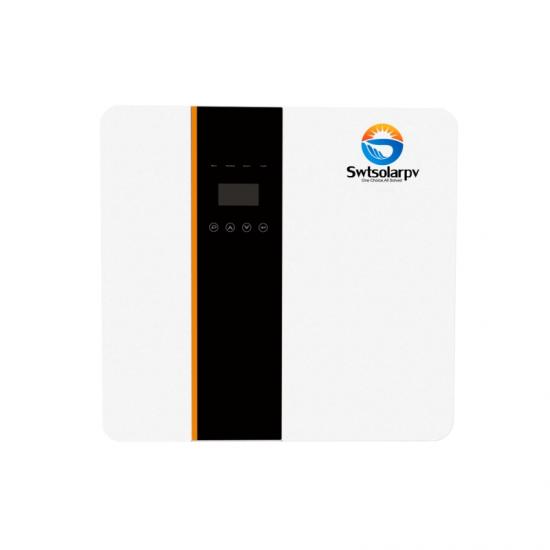

Single-phase Hybrid Inverter
|
Product Features：
Flexible configuration：
Support multi-parallel connection
Support flexible access of diesel generator
Compatible with lead-acid and lithium-ion battery
Safe and reliable：
Passed IEC/EN62109-1/-2, IEC/EN62477-1, South Africa NRS097-2-1:2017, IEC/EN 61000-6-1, IEC/EN 61000-6-3 test certification
Battery reverse connection protection, anti-power control function;
Convenient operation and maintenance：
Support intelligent EMS management function
Support on/off-grid automatic switching function to ensure
uninterrupted power when important loads are off-grid
Advanced：
Home smart energy management system
Support full power discharge, automatic management of battery charge and discharge
Equipped with CAN port, RS485 port, RS232 port for remote control, x1 DRM port, which makes the system smart and flexible
|
 |
Application
● Solar Villa
● Telecom Base Station
● Solar Plus Storage
● Solar Farm
● Residential Rooftop
● Field Power Supply |
| Model | SI1P3KLE | SI1P3.6KLE | SI1P4KLE | SI1P4.6KLE | SI1P5KLE | SI1P6KLE |
| Input(PV) | ||||||
| Max.input power(kW) | 4.6KW | 6KW | 7KW | |||
| Max. DC voltage(V) | 550V | |||||
| MPPT voltage range(V) | 125~550V | |||||
| Max.input current of single MPPT(A) | 14A | |||||
| MPPT tracker/strings | 2/1 | |||||
| AC output | ||||||
| Rated output power(KVA) | 3KVA | 3.68KVA | 4KVA | 4.6KVA | 5KVA | 6KVA |
| Max output current(A) | 13A | 16A | 17.4A | 20A | 21A | 26A |
| Grid voltage/range(V) | 230/176~270V | |||||
| 50 /60 | ||||||
| PF | 0.8lagging-0.8leading | |||||
| THDI | <3% | |||||
| AC output topology | L+N+PE | |||||
| Battery | ||||||
| Battery voltage range(V) | 40~58V | |||||
| Max. charging voltage(V) | 58V | |||||
| Max. Charging /discharge current(A) | 95A/62.2A | 95A/75A | 95A/83.3A | 95A/95.8A | 95A/104.2A | 95A/110A |
| Battery type | Lithium /Lead-acid | |||||
| Communication interface | CAN/RS485 | |||||
| EPS output | ||||||
| Rated power (KVA) | 3KVA | 3.68KVA | 4KVA | 4.6KVA | 5KVA | 6KVA |
| Rated output voltage(V) | 230Vac | |||||
| Rated output current(A) | 13A | 16A | 17.4A | 20A | 21.7A | 26A |
| Rated frequency (HZ) | 50/60Hz | |||||
| Automatic switching time (MS) | <20ms | |||||
| THDU | <2% | |||||
| Overload capacity | 110%,30S/120%,10S/150%,0.02S | |||||
| General data | ||||||
| Battery charge/discharge efficiency | 95%% | |||||
| DC Max. efficiency | 97.60% | |||||
| Europe efficiency | 97.70% | |||||
| MPPT efficiency | 99.90% | |||||
| Ingress protection | IP65 | |||||
| Noise emission (DB) | <35DB | |||||
| Operation temperature | -25~+60℃ | |||||
| Cooling | Natural | |||||
| Relative humidity | 0~95%(non-condensing) | |||||
| Altitude | 2,000m(>2,000 Derating) | |||||
| Dimensions WDH(MM) | 550/200/515mm | |||||
| Weight (KG) | 25KG | |||||
| Self-consumption(W) | <3W | |||||
| Display and communication | ||||||
| Display | LCD | |||||
| Interface:RS485/WiFi/4G/CAN/DRM | Yes/ Opt/ Opt/ Yes/ Yes | |||||
| Safety standard | IEC/EN62109-1/-21EC/EN62477-1 | |||||
| EMC | IEC/EN 61000-6-1IEC/EN 61000-6-3 | |||||
| On-grid | South Africa NRS097-2-1:2017,UK G98,G99 | |||||
