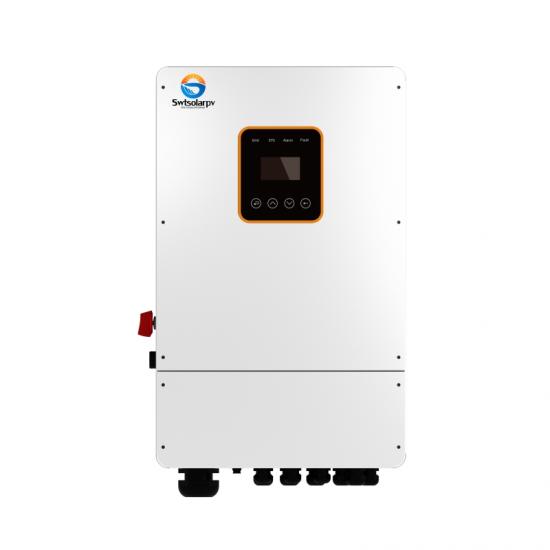

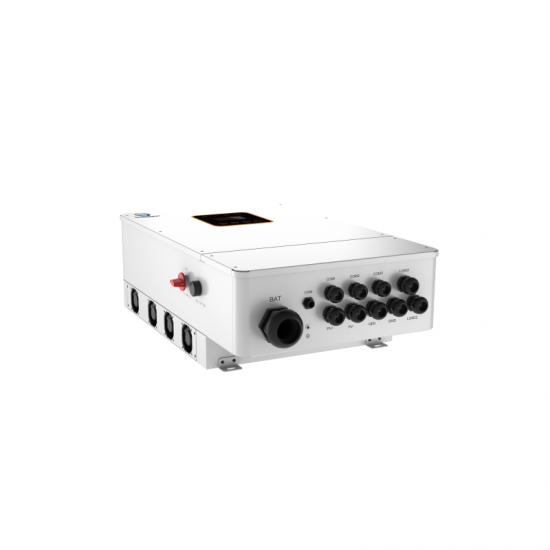

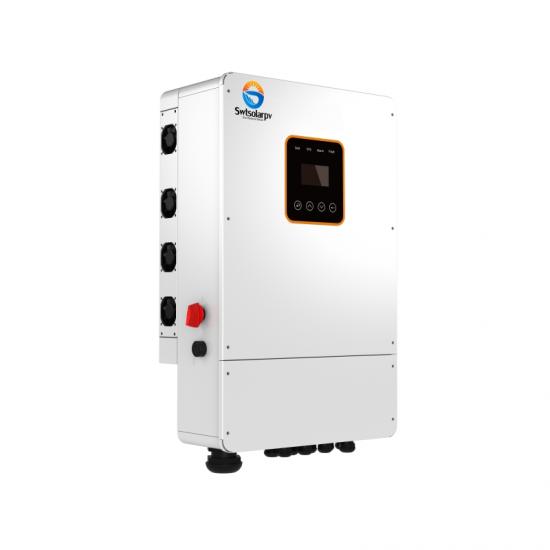

American Split Phase 48V Hybrid Inverter
|
Product Features：
Flexible configuration
Support multi-machine parallel connection, the maximum parallel connection can reach 8
Support multi-machine parallel mode sharing a battery pack
Single-machine load capacity 100A
Safe & reliable
Battery reverse connection protection, anti-power control function
Parallel available, intelligent BMS management
Passed UL 1741:2021, IEEE 1547.1, UL1699B, South Africa NRS097-2-1:2017 test certification
Advanced
Home smart energy management system of Split Phase Solar Inverter
Support power dispatch and demand response management

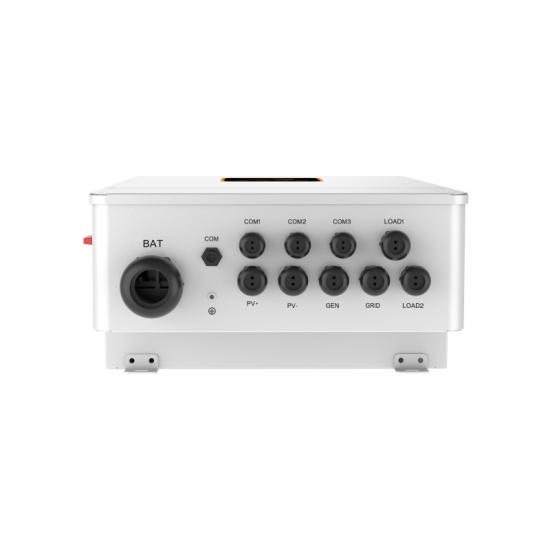

Equipped with CAN port, RS485 port, RS232 port for remote control, DRM port, which makes the system smart and flexible
Intelligent and efficient
Support parallel SOC equalization control and parallel current sharing control
Using split-phase topology and eliminating the transformers, to make the system efficiency higher
Support the diesel generator and the grid access at the same time
|
|
Benefits |
Application |
|
● Higher yields, reduce electricity costs by 50% per year
● Free energy available at night
● Participate in peak load shifting to gain additional economic benefits
● keeping critical load operation in power off
● Support 7*24 remote service |
● Solar Villa
● Telecom Base Station
● Solar Plus Storage
● Solar Farm
● Residential Rooftop
● Field Power Supply |
| Model | SIXP5KLE | SIXP6KLE | SIXP8KLE | SIXP10KLE |
| Input(PV) | ||||
| Max. power(kW) | 7.5kw | 9kw | 12kw | 13kw |
| MPPT voltage range(V) | 120-500V | |||
| Max. DC voltage(V) | 500V | |||
| Max.input current of single MPPT(A) | 12A | |||
| MPPT tracker/strings | 4/1 | |||
| AC output | ||||
| Rated output power(KVA) | 5KVA | 6KVA | 8KVA | 10KVA |
| Max output current(A) | 24A | 28.8A | 38.3A | 47.8A |
| AC output voltage(V) | 120/240(split phase), 208(2/3 phase), 230(single phase) | |||
| Frequency (HZ) | 50/60Hz | |||
| Power factor | 0.8lagging-0.8leading | |||
| THDI | <3% | |||
| AC output topology | Split phase, 2/3 phase, single phase | |||
| Battery | ||||
| Battery voltage range(V) | 40V~58V | |||
| Max. charging voltage(V) | 58V | |||
| Max. Charging /discharge current(A) | 120A/120A | 135A/135A | 190A/190A | 210A/210A |
| Battery type | Lithium /Lead-acid | |||
| Communication | CAN/RS485 | |||
| EPS output | ||||
| Rated power (KVA) | 5KVA | 6KVA | 8KVA | 10KVA |
| Rated output voltage(V) | 120/240(split phase), 208(2/3 phase), 230(single phase) | |||
| Rated output current(A) | 24A | 28.8A | 38.3A | 47.8A |
| Rated Frequency (HZ) | 50/60Hz | |||
| Automatic switching time (MS) | <20ms | |||
| Output THDU | <2% | |||
| Overload capacity | 125%, 60S/150%,1S | |||
| General data | ||||
| Max. efficiency | ≥98.2% | |||
| North American efficiency | ≥97.2% | |||
| Ingress protection | IP65/NEMA 3R | |||
| Noise emission (DB) | ＜25db | ＜29db | ＜29db | ＜29db |
| Cooling | Natural | |||
| Operation temperature | -25~+60℃ | |||
| Relative humidity | 2,000m(＞2,000 Derating) | |||
| Weight (KG) | 41KG | |||
| Dimensions W*D*H(MM) | 430*220*710MM | |||
| Isolation transfomer | No | |||
| Self-consumption(W) | <3W | |||
| Display and communication | ||||
| Display | LCD, touch screen | |||
| Interface:RS485/WiFi/4G/CAN/DRM | Yes | |||
| Safety standard | UL1741SA all options, UL1699B, CSA 22.2 | |||
| EMC | FCC Part 15, Class B | |||
| On-grid | IEEE 1547,IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase l,Il,Il,NRS | |||
