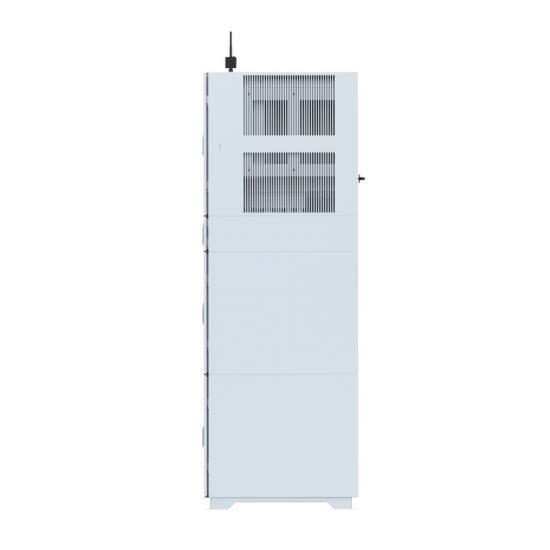

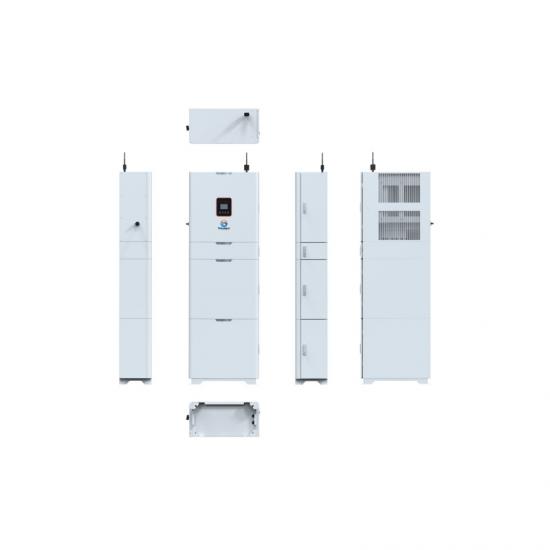

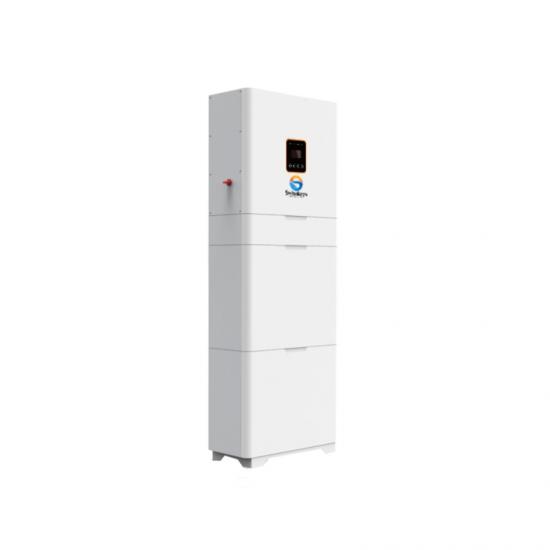

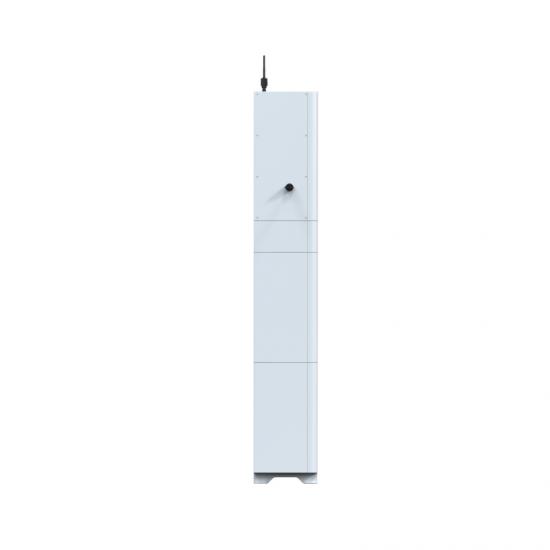

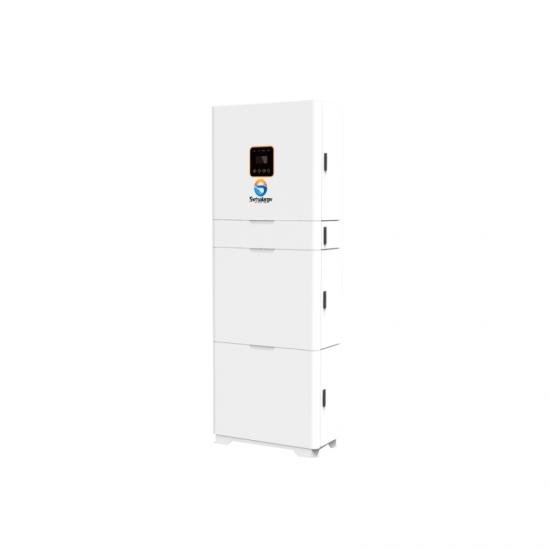

21.32Kwh 31.93Kwh High-Voltage All-In-One Stackable ESS Energy Storage Battery

An efficient, safe, and intelligent home energy storage solution, featuring a convenient modular battery design and integrated inverter, EMS, and UPS management system. Seamlessly switch between power sources, remotely control your energy needs, and customize intelligent operating plans.

It is a fully-integrated LiFePO4 battery system for residential usages. The system combines the most advanced battery management system with super power supply capacity to provide sustainable & green energy for your working and family usages all day.





  • Payment:

    FOB
  • Product Origin:

    Fujian
  • Color:

    White
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    7-15 Days
  • Order(MOQ):

    10
  • Product weight:

    60kg

High-Voltage All-In-One Stackable ESS  Benefit









High-Voltage All-In-One Stackable ESS Parameters Table

Battery Module SBS410V-GL3 SBS614V-GL3
Model 410V 52Ah 614V 52Ah
Energy(kWh) 21.3 31.95
Operating Voltage Range(V) 358.4~449.28 576-700
Life Cycle 6000 @80% DOD,25C/0.5C
Charge/Discharge Current(A) 50 50
Dimension(L*W“H)(mm) 653*301.5*1846 653*301.5*2364
Weight(Kg) 320 440
AC
Rate AC Output Power(kW) 12
Grid Voltage/Range(V) 400/360~440
AC Output Frequency(Hz) 50/60
Grid Connection 3W+N+PE
General Data
Display LCD
Communication CANRS485WIFI
Operating Temperature -10~55
IP Rating IP65
Cooling Natural Convection
Certification IEC62477, IEC62109;UN38.3, MSDS



High-Voltage All-In-One Stackable ESS Applications
