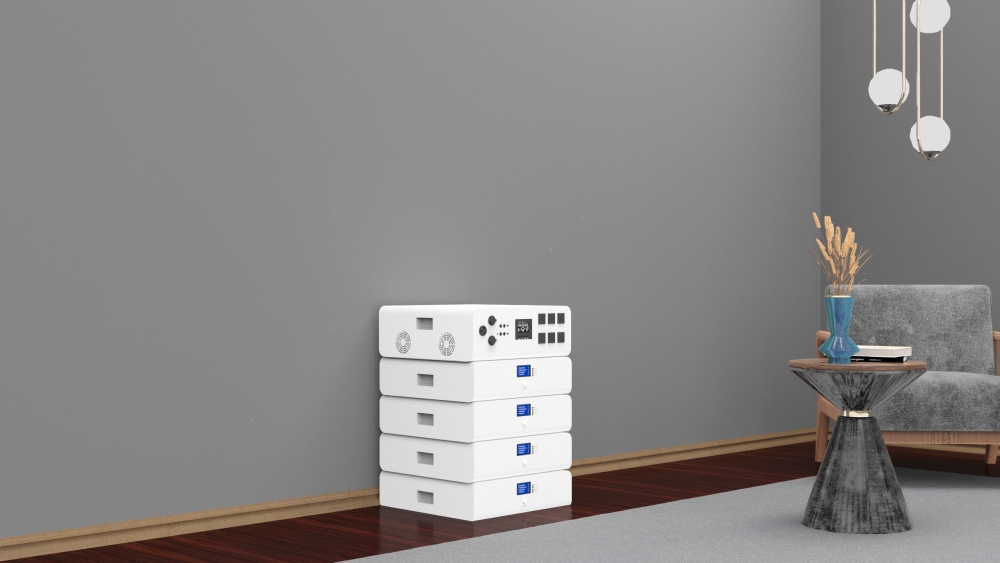

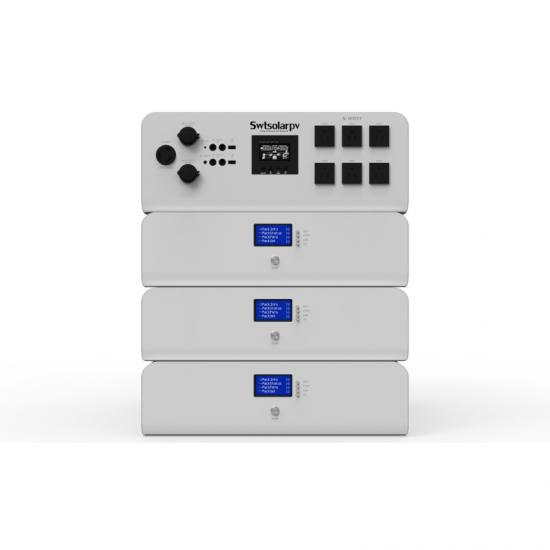

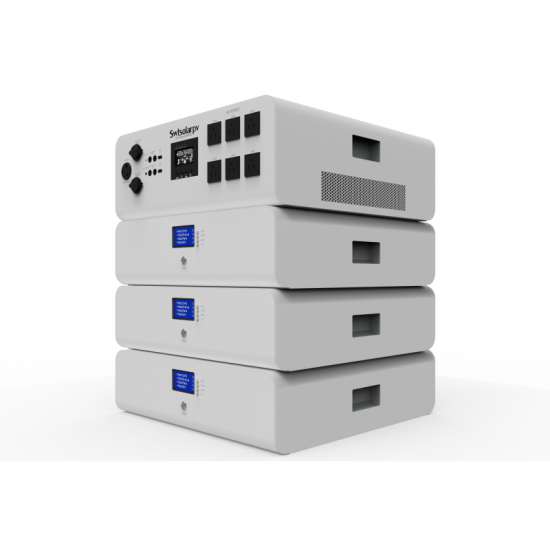

Single-phase off-grid energy storage system
Model
51.2V 50Ah
51.2V 86Ah
51.2V 100Ah
Type
3000W/50AH
5000W/100AH
8000W/150AH
10000W/200AH
Nominal voltage
51.2V
Battery Module
50Ah/2.56kwh
100Ah/5.12kwh
150Ah/7.68kwh
200Ah/10.24
Rated Power
3000W
5000W
8000W
10000W
Peak Power
6000W
10000W
16000W
20000W
Operating Voltage
47.2~56.8V
Output Waveform
Pure Sine Wave
Output Voltage
220VAC/230VAC±2%
Output Frequency Range
50Hz/60Hz±10%
Input Voltage Range
220VAC/230VAC
AC Charging Current
10A~40A(Optional)
Battery Type
Lithium Iron (LFP)
Solar Controller
50A
100A
120A
120A
Solar input (max)
2400W
4800W
5760W
5760W
Cooling
FAN cooling
Efficiency (DC to AC)
85%
Function
Installation
Floor standing installation
Output port
4 * DC12V 10A output port, 2 * USB 5V 1A output port, 2 * AC 220V output port
Alarm&protection
Over Voltage, Under Voltage, Over Current, Over temperature, Short Circuit etc.
Communication port
RS232/CAN/RS485(Optional)
Cell safety certification
CE.IEC62619.UL1973,CEC.UN38.3
