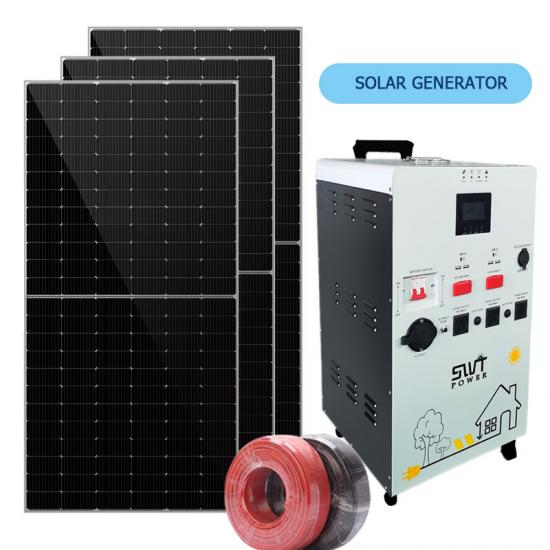

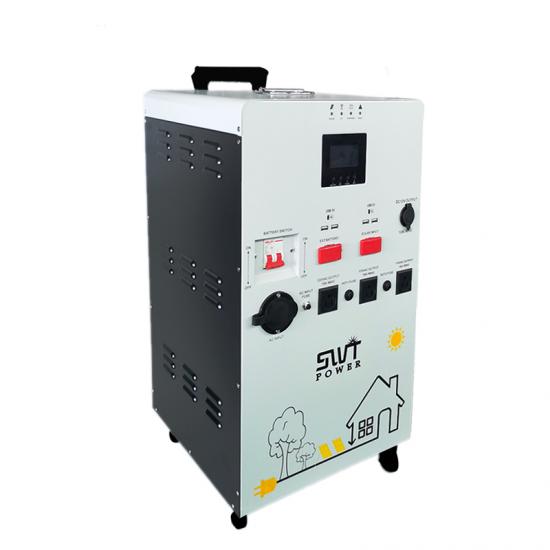

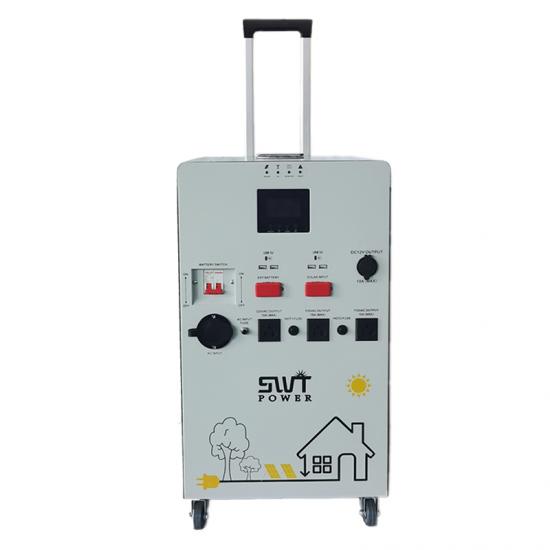

What is the portable solar generator?
A portable power station is a generator powered by a rechargeable battery.
Equipped with an AC outlet, DC carport, and USB charging ports, they can keep all your gear charged, from smartphones, tablets, laptops, to CPAPs and small devices, like a fan, mini coolers, electric blankets, etc.
|
Model |
LF-SG 3KW |
|
INVERTER OUTPUT &INPUT |
|
| Rated Power | 3000W |
| Peak Power | 9000W |
|
Output Waveform |
Pure Sine WaveForm |
|
Output Voltage |
10/120VAC（L-N) & 220/230/240VAC(L-N-L)±10RMS |
|
Cooling Method |
Intelligent fan cooling, ≤42℃ fan rotates slowly, ≥45℃ fan rotates fast |
|
AC INPUT&OUTPUT |
|
|
Input Voltage Range |
110/120VAC（L-N) & 220/230/240VAC(L-N-L) |
|
Output Voltage Range |
85-138VAC(AC:110) 170-275VAC(AC:220) |
|
Output Frequency Range |
Automatic tracking |
|
AC Charging Current |
15A |
|
Solar Controller |
|
|
Max PV input power |
48V-30A:1440W,48V-50A:2400W,48V-60A:2880W,48V-80A3840W,48V-100A:4800W,48V-120A:5760W |
|
Max solar charging current |
30A,40A,50A,60A,80A |
|
PV array MPPT voltage range |
48V:72V-150V |
|
Battery |
|
| Battery type | LiFePO4 |
| Capacity | 3000wh |
Packing details:
Projects:
