Intergrated MPPT charger controller.
Equalization charging function.
Use with Batteries or without.
Max PV input up to 450vDC.
Choose grid or solar input priority.
WIFI/GPRS remote monitoring.
Parallel up to 6 inverters.
PV & Grid Power combine if PV energy is insufficient for load.
Flexible schedule for charging and discharging the battteries.

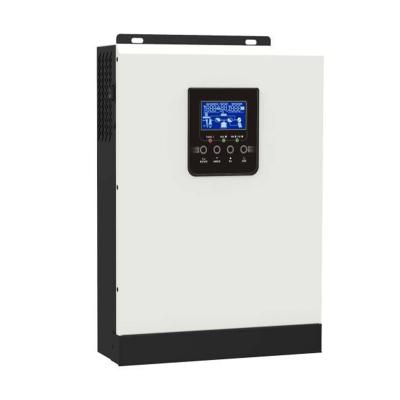

| Model |
SPF 5000 ES |
|
Battery voltage |
48VDC |
|
Battery type |
Lithium/Lead-acid |
|
INVERTER OUTPUT (AC) |
|
| Rated power | 5000W |
| AC Voltage Regulation (Battery) |
230VAC ± 5% |
| Surge power | 10000VA for 5 sec |
|
Efficiency (Peak) |
93% |
| Waveform | Pure sine wave |
|
Solar Charger |
|
|
Maximum PV Array Power |
6000W |
|
MPPT Range @ Operating Voltage |
120-430VDC |
|
Maximum PV Array Open Circuit Voltage |
450VDC |
|
Maximum Solar Charge Current |
100A |
|
AC CHARGER |
|
|
AC Charge Current |
80A |
|
AC Input Voltage |
230VAC |
|
Frequency Range |
50/60HZ |
|
PHYSICAL |
|
|
Protection degree |
IP20 |
| SIZE |
330 x 485 x 135mm |
